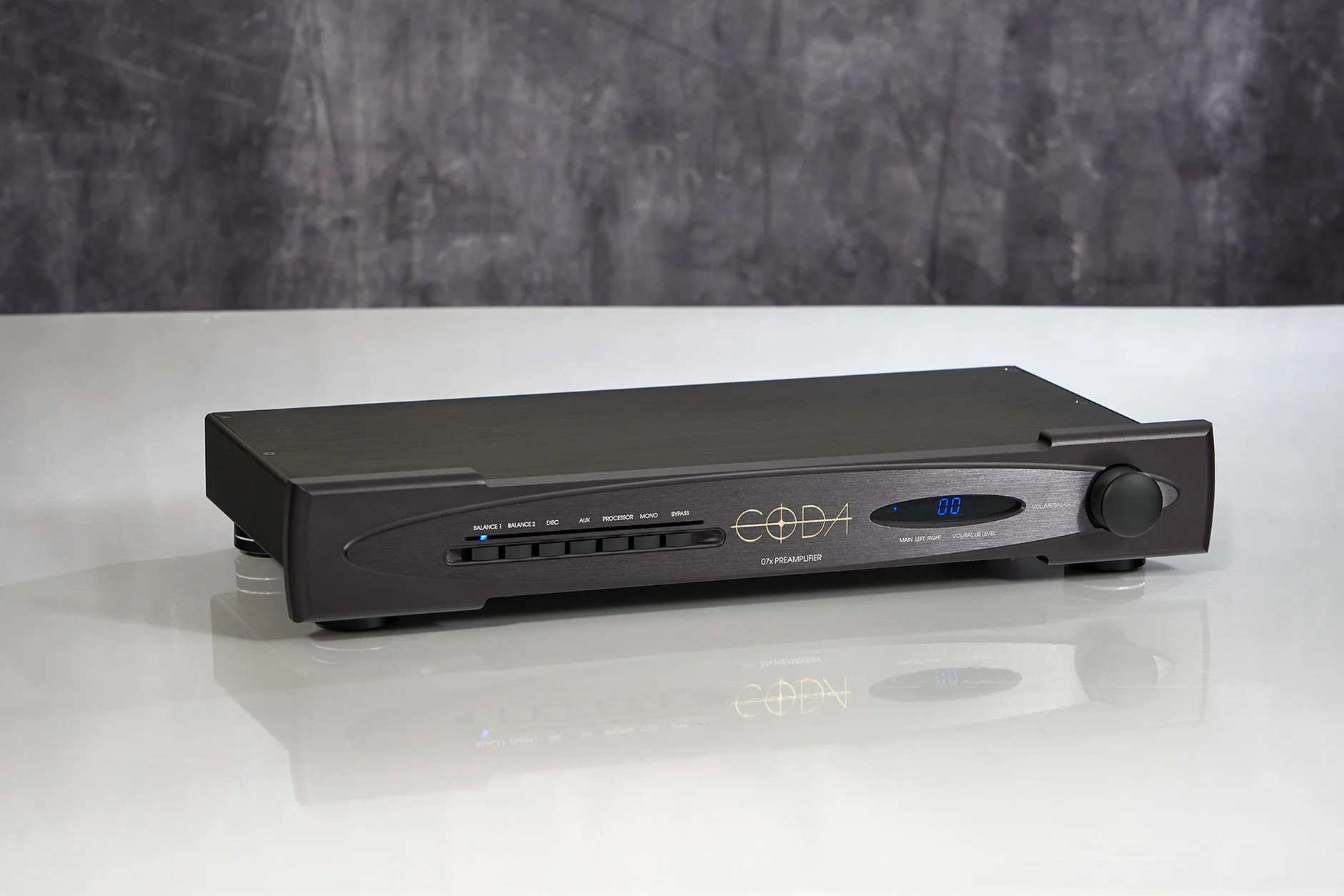

קדם מגבר Coda 07x FET

Latest iteration of the '0' series preamplifiers, featuring substantial active and passive component upgrades

Balanced and unbalanced inputs and outputs

Extremely low-noise circuitry with no overall feedback

May be operated with included CODA universal remote control

System logic remembers the most recent volume and balance settings for each input

Wide bandwidth regulated supply with AC EMI and RFI line filter

Double-sided gold-plated circuit boards

All anodized chassis

10 year warranty / 5 year transferable

Frequency Response: -3dB @ 5Hz to 200kHz

Distortion: <.005% from 10Hz to 40kHz @ 5V peak into 600 Ohms or higher shunted by 1000pF

Gain: Unbalanced Output: 12dB @ 1kHz Balanced Output: 46db @ 1kHz

Maximum Output: 10V peak

Noise: <110dB referenced to 1V output

Input Impedance: 20kOhms

Output Impedance: 50 Ohms non-reactive unbalanced 100 Ohms non-reactive balanced

Crosstalk: 90dB @ 20kHz

Dimension: 18” W x 9.75” D x 2.5” H
