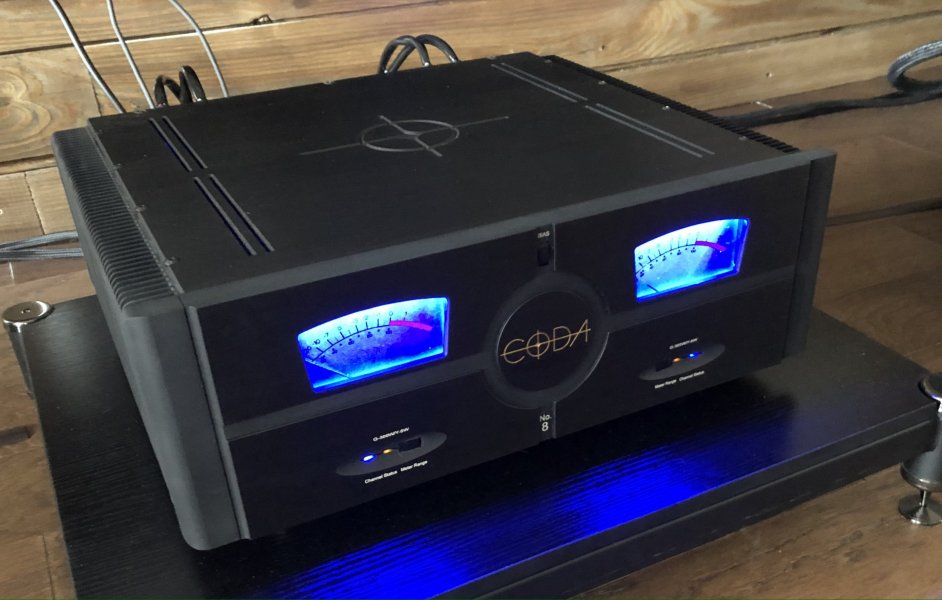

Coda 16 Amplifier

100 Watts of Pure Class A Precision Bias operation

150 watts into 8 ohms

300 watts into 4 ohms

Maximum current: 100 amperes per channel

Power supply: 3KVA power transformer/ Dual independent rectification and 280,000 of power supply filter capacitance

RCA & XLR Inputs

17.5”W, 19”D, 7.7”H

110 pounds

Graphite anodized aluminum and stainless-steel finish chassis

Ultra high current non-bridged design

Fully discrete FET differential input stage

Vertical MOSFET Voltage Gain Stage

DC coupled to an ultra wideband bipolar output stage

Very high linear damping with minimal feedback

AC-coupled unbalanced input and true DC coupled balanced input

Double-sided gold plated circuit boards

Low-impedance power supply filter capacitor array

Graphite anodized aluminum and stainless steel finish

Power supply and Bias status indicators

10 year warranty / 5 year

Designed, manufactured and assembled in the USA
